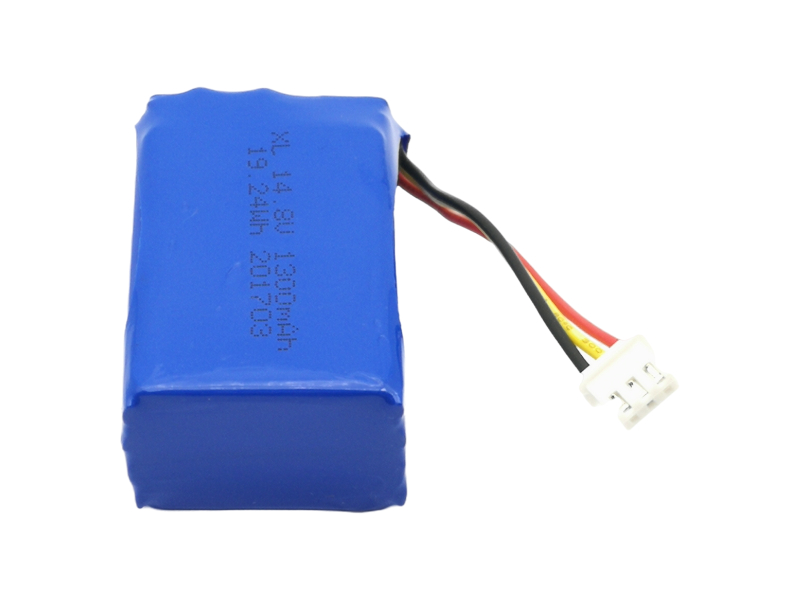

14.8V cylindrical lithium battery Product model: XL 14.8V 1300mAh
Technical parameters of 14.8V cylindrical lithium battery (specific design accordingཧ to customer requirements-voltage/capacit🅠y/size/line)
·Single battery model: 18650
·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 14.8V
·Single battery capacity: 1.3Ah
·Battery combination: 4 strings and 1 parallel
·Battery voltage range after combination: 10V-16.8V
·Battery capacity after combination: 1.3ah
·Battery pack power: 19.24Wh
·Battery pack size: 39*39*69mm
·Maximum discharge current: <1.3A
·Instantaneous discharge current: 2.6A-3.9A
·Maximum charging current: 0.2-0.5c
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)
14.8V cylindrical lithium battery
·Comply with relevant national battery standards and requirements
·All finished batteries have been caꦚlibrated and tested before they leave the factory and can be used directly.
